| Product | Picture | Flow range | Pressure range | Speed of main shaft | Impeller diameter | |||
|---|---|---|---|---|---|---|---|---|
| m3/h | cfm | pa | mmwc | rpm | mm | in" | ||
| 5-11D |
 |
590-560735 | 347-329845 | 684-9887 | 69-1100 | ≤4000 | 400-3300 | 15-130 |
| 4-14A |
 |
2749-431290 | 1617-253700 | 1476-7300 | 150-745 | ≤4000 | 400-2200 | 15-87 |
| 9-11D |
 |
603-154074 | 355-90632 | 364-8683 | 37-885 | ≤4000 | 400-3000 | 15-119 |
| 9-10D |
 |
273-81858 | 160-48152 | 348-15425 | 35-1573 | ≤4000 | 250-2000 | 9-79 |

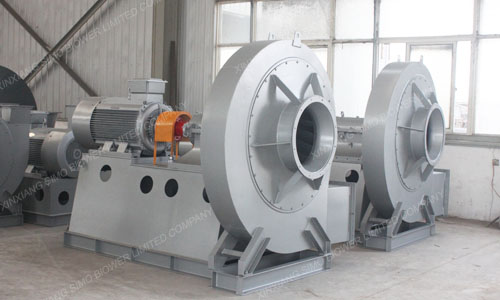

5-11D Medium pressure centrifugal fan
Description : 5-11 medium pressure centrifugal fan can be used for conveying various common gas and hard materials in industrial production, suitable for high temper...
Description : 4-14 series fan, with large air capacity, low noise, can be used for conveying clean gas, dusty gas, corrosive gas and flammable gas at normal temperat...
Description : 9-11 fan, with larger air flow, moderate pressure, is suitable for conveying clean gas at normal temperature, and is widely used in boiler blowing air,...
9-10D Industrial blowers and fans
Description : 9-08/9-10 fan, can output high gas pressure, and is suitable for conveying clean/combustible/corrosive/a little impurity gas at normal temperature, or ...
