SIMO BLOWER's high pressure series fans are specially designed for the application of high pressure, to meet the needs of high pressure on the base of the required air capacity.
SIMO BLOWER's high pressure series fans can according to the different transmission medium, manufacturing to the fan with high pressure performance of high temperature centrifugal fan, anti-corrosion fan, explosion-proof fans, and other types. The high pressure fans can deliver clean gas, dusty gas, combustible gas, corrosive gas, powder or granular materials in normal temperature or high temperature.

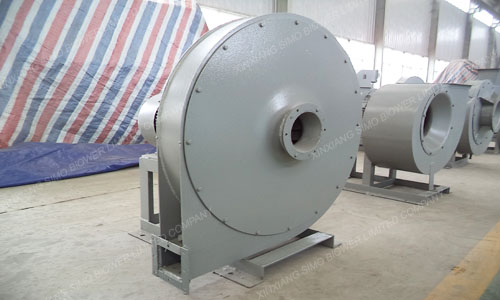

SIMO BLOWER’s High Pressure Centrifugal Fans are mainly used in industrial fields, typical applications are: forced ventilation, forced cooling and heat dissipation, material drying or cooling , air pollution control equipment,, dust collection system and air filtration system, coal-fired boiler system, biomass fuel boiler ，garbage incinerator , circulating fluidized bed boiler , chain grate boiler forced draught and induced draught , industrial boiler primary fan ,secondary fan, Flue gas desulfurization ,cement production line grate cooler cooling , cement mill,  coal mill and other large mill system, industrial waste heat recovery unit, sintering (sintering), air draught for smelting blast furnace and casting furnace, blast furnace combustion, the blast furnace coal injection, conveying and boosting of the coal gas, coke production (coke oven), industrial equipment pressurization or boost sealing , industrial waste gas recovery, etc, which is the most widely used fan series in industrial field.
SIMO BLOWER’S high pressure fans’ impellers all adopt forward or radial design, the thickness of the impeller is very small, but its structural strength is very high, with good operation security.
The air inlet size of the high pressure fans is relatively small and its inner space is also very narrow, the blades are very long and narrow, which improves the flow velocity very fast when the air get in the fan, and flows toward to the outlet with high speed, producing strong suction at the air inlet and outputting strong pressure at the air outlet.
SIMO BLOWER’S high pressure fans are with higher speed compared to other series of fans, it is part of high speed fan, In order to keep the fan system operate reliably, we use stronger shaft produced by the high strength metal materials and high quality bearing that can bear high speed. After production, the high pressure fans’ impellers will be balanced by more strict high standard dynamic balance correction, impeller with larger diameter will be treated by annealing processing, the stability of the operation is very good
Under normal conditions, High Pressure Centrifugal Fans are not recommended to use for serious abrasion working environment, but can be designed by using special material, anticorrosive coating, spraying alloy coating to resist corrosive working environment and prolong the service life of the impeller, reduce downtime and maintenance costs.
